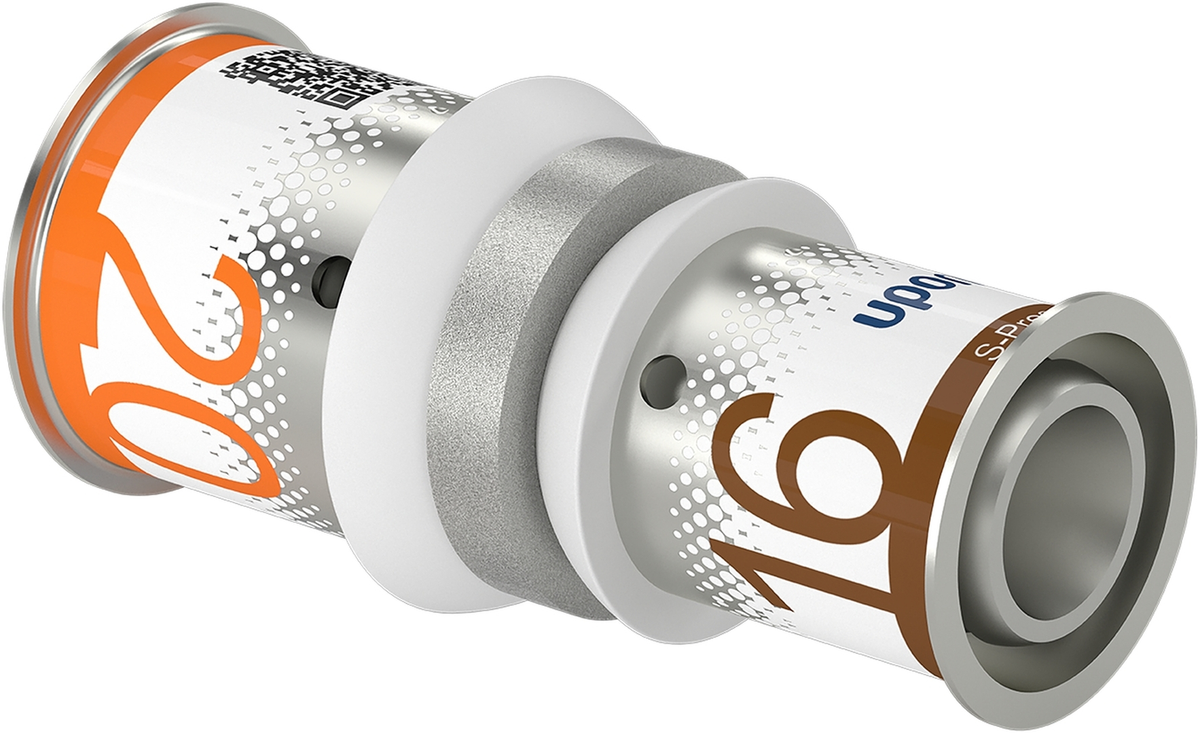

Uponor S-Press Plus - press coupling - reducing

Material connection 1: Brass

Connection quality class 1: Brass, low dezincification

Surface protection connection 1: Tinned

Material connection 2: Brass

Connection quality class 2: Brass, low dezincification

Surface protection connection 2: Tinned

Main colour fitting: Grey

Shape: Straight

Design: 1-piece

Bend angle: 0°

Expiring: Yes

Eccentric: No

System-bound: Yes

Nom. diameter connection 1: DN 15

External pipe diameter connection 1: 20 mm

Connection 1: Press socket

Contour code connection 1: UP

External pipe diameter connection 2: 16 mm

Connection 2: Press socket

With bumper/rim: Yes

Length: 53mm

Length connection 1: 27 mm

Working length connection 1: 6 mm

Length connection 2: 26 mm

Working length connection 2: 6 mm

Medium temperature (continuous): 0°C

Max. working pressure at 20°C: 10 bar

With gaskets: No

Capped: No

With tap: No

With breather: No
