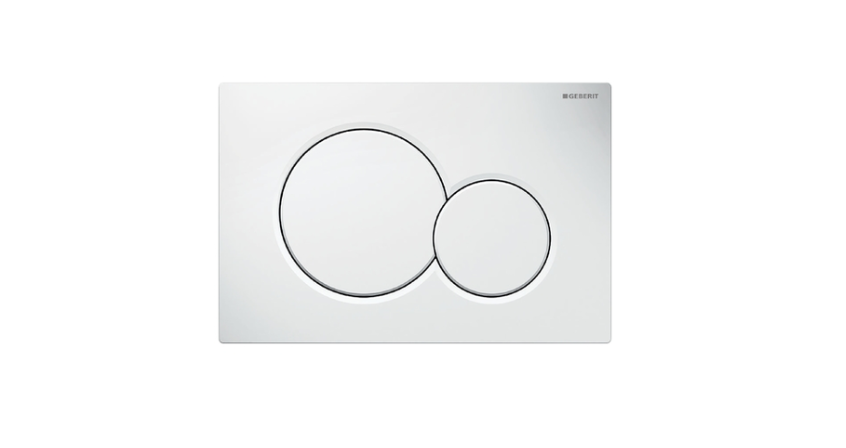

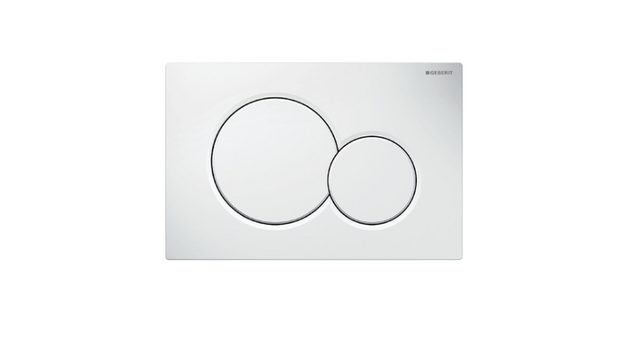

Geberit Sigma - 01 actuator plate - Sigma 01 DF - front-operated

Self-supporting construction: Yes

Material: Ceramic

Suitable for drywall: Yes

Suitable for solid wall: No

Suitable for sanitary installation wall system: Yes

Surface protection: Coated

Adjustable height: Yes

Width adjustable: No

Depth adjustable: Yes

Toilet height adjustable: No

Height: 1120
Width: 500
Depth: 120

Material flush tank: Plastic

Quality class flush tank: Polyethylene (PE)

Min. flushing water quantity: 3

Connection of tap water:
External thread

Max. flush water quantity: 7.5

External pipe diameter of tap water: 15

Water connection size: 1/2"

Rinse: Two quantities

Adjustable flush water quantity: Yes

Rinse water quantity: 3

Suitable for manual operation: Yes

Suitable for pneumatic operation: Yes

Suitable for electric operation: Yes

Suitable for radar control: No

Suitable for infrared control: Yes

Suitable for front control: Yes

Suitable for planchet operation: No

Min. shelf height: 1120

Programmable with remote control: No

With building management system connection: No

With stopcock: Yes

With supply and discharge fitting: Yes

KIWA approval: Yes

With drain bend: Yes

External pipe diameter drain: 90

With contact sound insulation set: Yes

With mounting material element: Yes

With mounting material closet: No

Frame suitable for toilet with jump > 60cm: No

Filler under reservoir: No

With mounting bracket for high wall mounting: Yes

With mounting bracket for low wall mounting: Yes

With mounting bracket for floor mounting: Yes

With electrical connection: Yes

Connection voltage: 230

Battery Powered: No

Suitable for toilets with a reduced contact area: Yes

Center distance of toilet attachment: 18 cm and 23 cm

Suitable for shower toilet: Yes

With fan connection: No

Number of tap water connections: 1

Load capacity >= 400 kg according to EN 997: Yes

With anti-condensation insulation: Yes

Degree of protection (IP): Other
